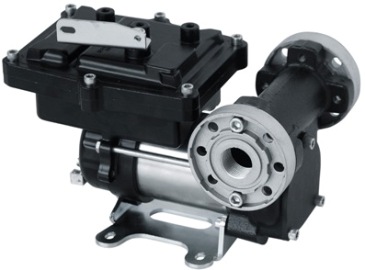

EX50 12V Explosion Proof Fuel Pump

Code: F00371000

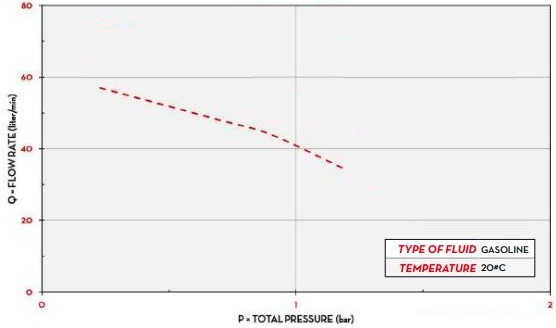

• Flow rates up to 50 l/min

• Delivery head up to 20m

• Self priming up to 2m

• Ports F 1" G Threaded flange connection

• Internal recycle valve

• Duty cycle: 30 / 60 min on / off

• Thermal Protection.

• Motor Power 250W - 12Vdc - 21A

• Flame Proof Classification: II 2 G Ex d IIA T4 Gb

• Supplied With;

  • EX Cable Gland

  • 4m Cable without clamps

• Suitable for:

  • Petrol and Diesel

  • AVGAS 100 / 100LL

  • JET A / A1

  • Paraffin

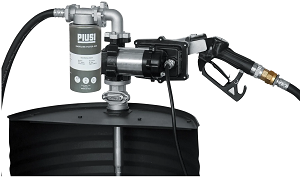

OPTIONAL: Can be supplied in a drum kit with nozzle holder
