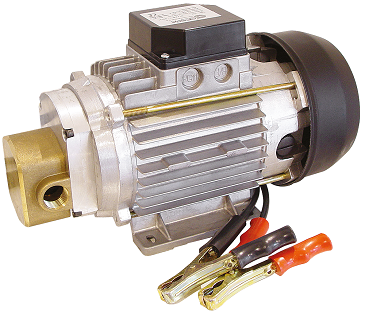

EA-90 DC

Robust Heavy Duty Lubricant Transfer Pump

Codes:

   12Vdc: 03014-CF00000

   24Vdc: 03090-CF00000

• Type: Gear

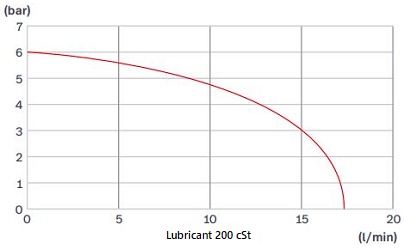

• Free Flow rate up to 25 l/min

• Delivery pressure up to 5 bar

• Self priming pipe Ø ¾" or greater ;

  • Vertical up to 2.5m

  • Suction pipe length up to 4m

• Connections ½" F BSP

• Internal recycle valve

• Pumps clean oil up to medium viscosity 200cSt

• Motor power 400W - IP55

• * S1 Continuous duty fan cooled motor

• Current;

  • 12Vdc Pump - 35 to 55 A

  • 24Vdc Pump - 20 to 32 A

• 3m Cable with clamps

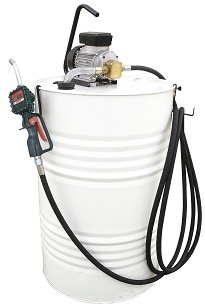

• OPTIONAL: Can be supplied as a drum kit.

*Battery must be charging while the pump is running
