Thoelen Pumps
Product Summary

Brands
Lutz Pumps
Gespasa Equipment
Cucchi Pumps
Pollard Pumps
Thoelen Pumps
Piusi Equipment
Adam Pumps

Hand Pumps





Peristaltic Pumps

  • Features

    • Compact free standing pumps.

    • Thick wall tubes are suited to pumping viscous products.

    • Good suction vacuum and discharge pressures.

    • Suited to either intermittent duty or long term continuous operation.

    • Ideal for a wide range of applications, such as metering and filling.

  • Pump Heads

    • TP Range - Laboratory & Light Industry

      • Tough plastic body with hinged protection cover

      • 2 Roller Rotor with high quality bearings

      • Extra shaft bearing to improve accuracy.

      • Take multiple tube ID sizes without adjustment

    • RA Range - Industrial

      • Aluminium alloy body with hinged protection cover.

      • Epoxy coated.

      • 3 Roller Rotor in steel and stainless with High quality bearings.

      • Extra shaft bearing to improve accuracy.

      • Take multiple tube ID sizes without adjustment.

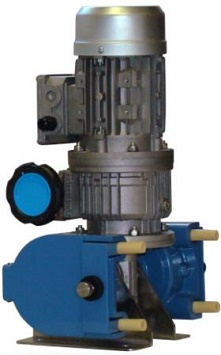

      • Double head connection to one drive

  • Tubing

    • Santoprene tubing is standard.

    • Derived from PP/EPDM, the tubing has a high resistance to chemicals and to wear.

    • Carries the FDA food grade approval. (Viton and Silicon on request)

  • Motor and Reduction Drive

    • Powered by a high quality IP55 induction motor via a reduction worm drive.

    • Can be supplied as a fixed flow rate pump.

    • Variable flow by Variable Speed Drive (VSD) or mechanical veriator.

    • 0.18kW motor 230V/400V/3ph/50Hz or 230V/1ph/50Hz.

    • S1 Continuous duty

    • Special Voltages and classifications on request.



    back to top



TP4000 - 2.4mm Wall Tubing



TUBES

23 RPM

35 RPM

46 RPM

70 RPM

93 RPM

140 RPM*

200 RPM*

275 RPM*

6.4 mm

149   ml/min

226   ml/min

297   ml/min

452    ml/min

601 ml/min

904 ml/min

1292 ml/min

1777 ml/min

8.0 mm

230   ml/min

349 ml/min

459   ml/min

699    ml/min

928 ml/min

1397 ml/min

1996 ml/min

2745 ml/min



back to top

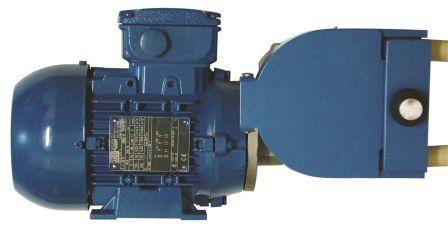

RA630 - 3.2mm Wall Tubing





TUBES

23 RPM

35 RPM

46 RPM

70 RPM

93 RPM

140 RPM*

180 RPM*

280 RPM*

9.5 mm

348   ml/min

530 ml/min

697   ml/min

1061    ml/min

1409 ml/min

2121 ml/min

2727 ml/min

4242 ml/min

12.7 mm

544   ml/min

827 ml/min

1087   ml/min

1655    ml/min

2198 ml/min

3309 ml/min

4255 ml/min

6618 ml/min

back to top

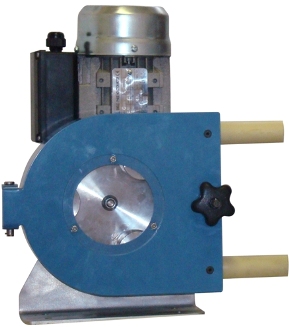

RA780 - 4.8mm Wall Tubing

TUBES

46 RPM

70 RPM

140 RPM*

186 RPM*

280 RPM*

16 mm

3 614   ml/min

5 499    ml/min

10 998 ml/min

14 612 ml/min

21 996 ml/min

19 mm

4 733   ml/min

7 202    ml/min

14 404 ml/min

19 137 ml/min

28 808 ml/min



* Not advised for continuous duty

All values are generalised, correct selection of pump parameters are specified by our technical department
